DOWNLOAD BROCHURESPECIFICATIONS

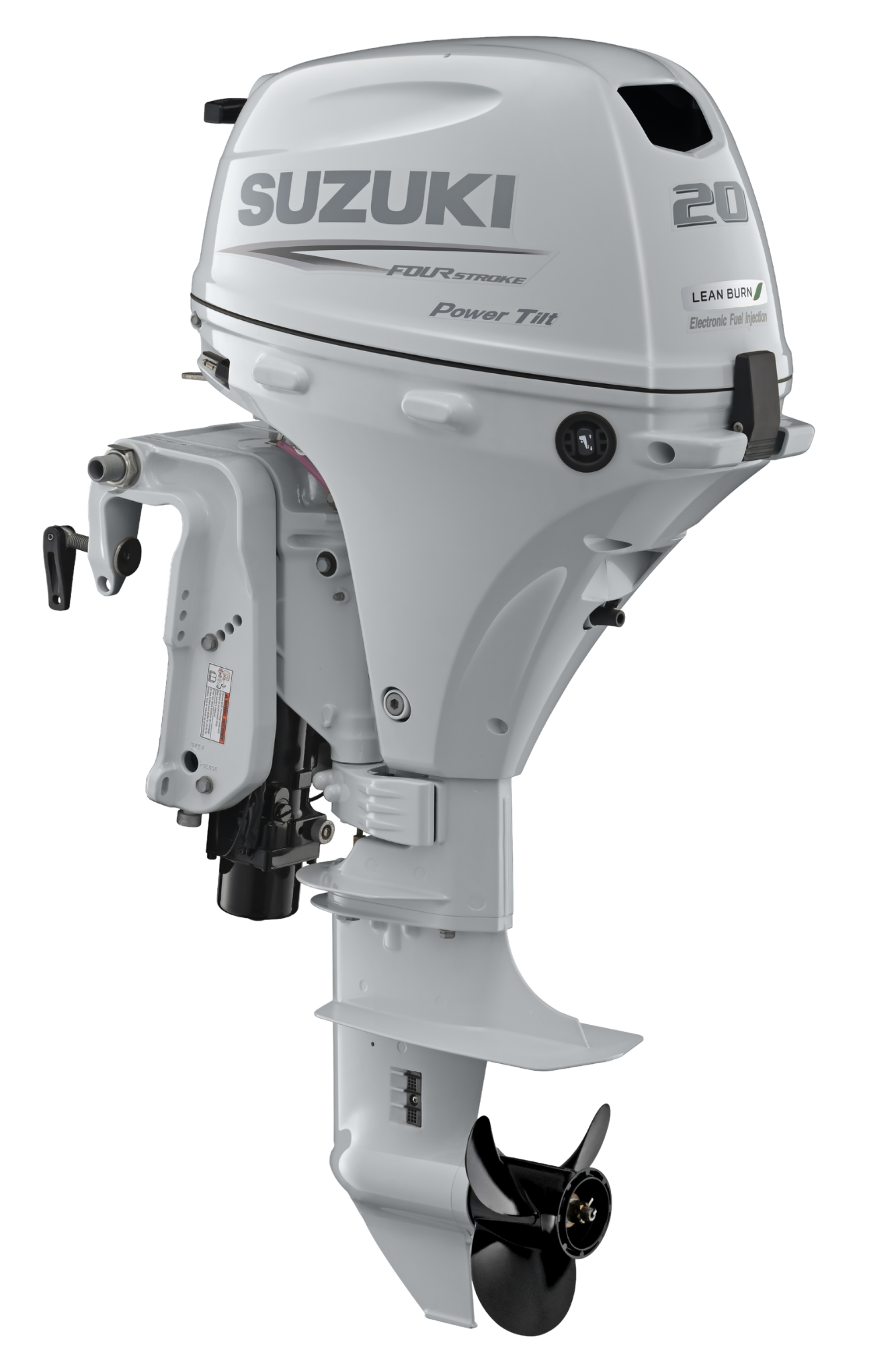

New lightweight Suzuki DF20A
Suzuki announces the launch of a new fuel-efficient and high performance four stroke outboard motor – the all-new DF20A. This new model, which made its world debut at the Düsseldorf Boat Show, will be the first in its class to feature battery-less Electronic Fuel Injection. The new Electronic Fuel Injection system will also be combined with Suzuki’s Lean Burn Fuel Control system, which will result in a number of benefits for boaters such as; easier starts, more responsive acceleration, smoother performance and above all, greater fuel efficiency.
READ MORE
To achieve this, Suzuki engineers have designed a completely new fuel injection system for this model, which includes; an inline high-pressure fuel pump, a throttle body and small fuel cooler, vapour separator and fuel injector.
By designing these component parts to be smaller than those used on larger Electronic Fuel Injection engines (DF40-DF300) the overall weight of this new model has also been kept as low as possible.
According to Suzuki’s internal testing, this means that at just 44kg the new model will be the lightest and most compact outboard in their class.
The compact size and light weight of the new DF20A makes it an ideal power match for a wide variety of boats, including; small RIBs and tenders, day boats for in-land waterways and small fishing boats to name but a few. In particular, this new outboard will be ideal for entry level boating.
Yasuharu Osawa, Group Manager for Suzuki’s Marine Division in Europe, said “We are delighted to be able to bring this new model to the market. They are an excellent addition to our existing range of portable outboards and by making them more lightweight and fuel-efficient than our competitors’ I am confident that they will be extremely popular with boaters world-wide.”
Battery-less electronic fuel injection
Delivers quicker easier starts, smoother running and quick acceleration without the bulk and weight of a battery.

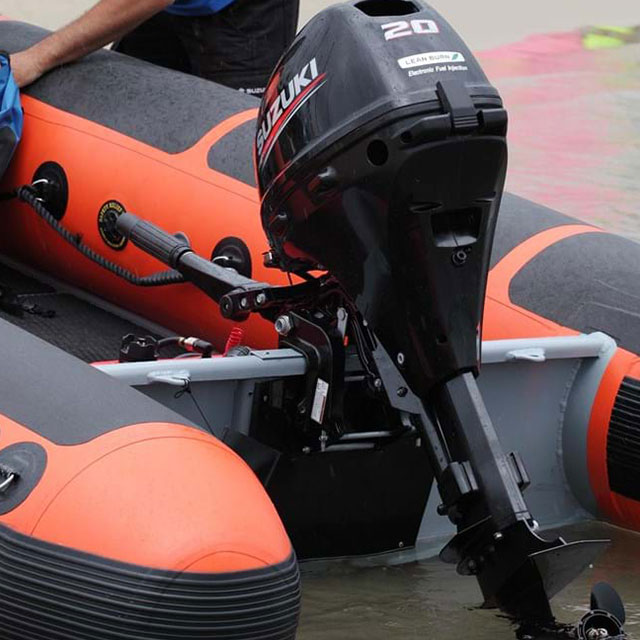

Lightweight and compact
The innovative technology used in the DF20A makes this the lightest outboard in its class.
Lean Burn control systems
Suzuki’s Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
RANGE
TILLER
DF20AS
DF20AL
REMOTE
DF20ATS
DF20ATL
SHORT
381mm
DF20AS
DF20ATS
LONG
508mm
DF20ATL
DF20AL
COLOURS
TECHNOLOGIES

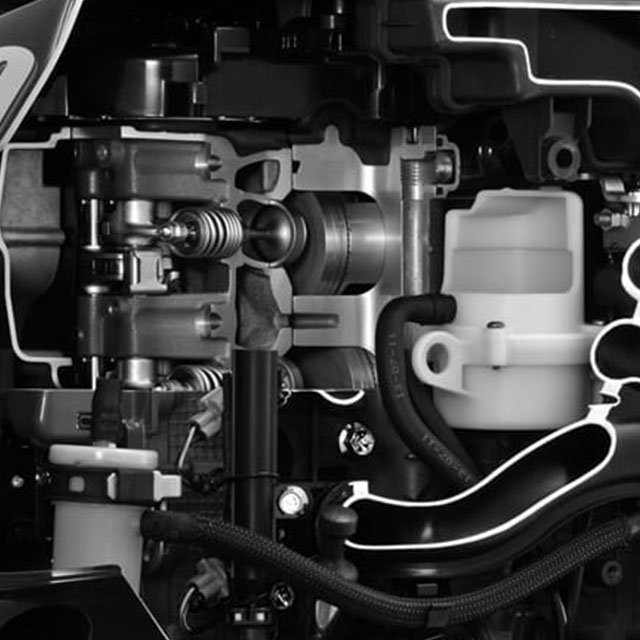

BATTERY-LESS ELECTRONIC FUEL INJECTION
Parts used in the larger models have been redesigned into a more compact design and mounted onto smaller size models.
ADVANTAGE:
- Quick and easy start.
- Cleaner and economic fuel consumption
- Higher performance in almost all operating ranges.
LEAN BURN
The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.
ADVANTAGE:
- Significant improvement in fuel economy in all speed ranges especially at cruising speed.
- Fuel is saved and gasoline costs are cut thanks to improved fuel economy.
SPECIFICATIONS
SPECIFICATIONS
| DF20AS/L | DF20AT/L | |
| ENGINE TYPE | 4-Stroke DOHC 4-Valve | 4-Stroke DOHC 4-Valve |
| FUEL DELIVERY SYSTEM | ELECTRONIC FUEL INJECTION | ELECTRONIC FUEL INJECTION |
| TRANSOM HEIGHT mm | S 381 | L 508 |
| L 508 | L 508 | |
| STARTING SYSTEM | Manual | Power |
| DRY WEIGHT kg – including battery cable, not including propeller and engine oil | 44 | 53.5 |
| NO. OF CYLINDERS | IN-LINE 2 | IN-LINE 2 |
| PISTON DISPLACEMENT cm3 | 327 | 327 |
| BORE x STROKE mm | 60.4 X 57 | 60.4 X 57 |
| MAXIMUM OUTPUT kW/rpm | 14.70/5,800 | 14.70/5,800 |
| FULL THROTTLE OPERATING RANGE rpm | 5,300 – 6,300 | 5,300 – 6,300 |
| STEERING | Tiller | Remote |
| OIL PAN CAPACITY Lit | 1 | 1 |
| IGNITION SYSTEM | Digital CDI | Digital CDI |
| ALTERNATOR | 12V 6A | 12V 6A |
| ENGINE MOUNTING | Shear Mount | Shear Mount |
| TRIM METHOD | MANUAL TRIM AND TILT | Power Tilt |
| GEAR RATIO | 2.08:1 | 2.08:1 |
| GEAR SHIFT | F-N-R | F-N-R |
| EXHAUST | Through Prop Hub Exhaust | Through Prop Hub Exhaust |
| DRIVE PROTECTION | Rubber Hub | Rubber Hub |
| PROPELLER SIZE (in.) | 9-1/4 X 7 | 9-1/4 X 7 |
| All propellers are the 3-blade type | 9-1/4 X 9 | 9-1/4 X 9 |
| 9-1/4 X 10 | 9-1/4 X 10 | |
| 9-1/4 X 11 | 9-1/4 X 11 |
