TOUGH. DEPENDABLE. QUIET.

Power, performance, reliability and fuel efficiency - ready for work or play.



Suzuki’s Lean Burn Fuel Control System

Suzuki’s Lean Burn Fuel Control System predicts fuel needs according to operating conditions and allows the engine to run on a very lean air to fuel ratio.

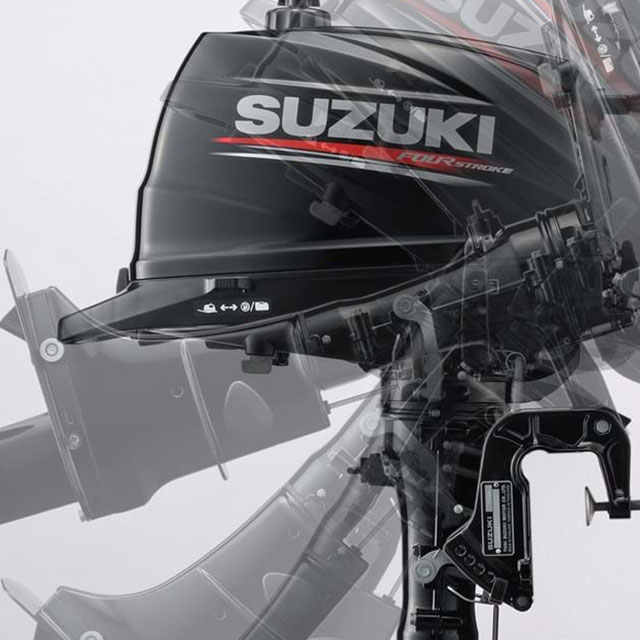

Tilt limit system

To protect the boat and motor from damage a user adjustable tilt limit switch prevents the outboard from tilting beyond a predetermined point.

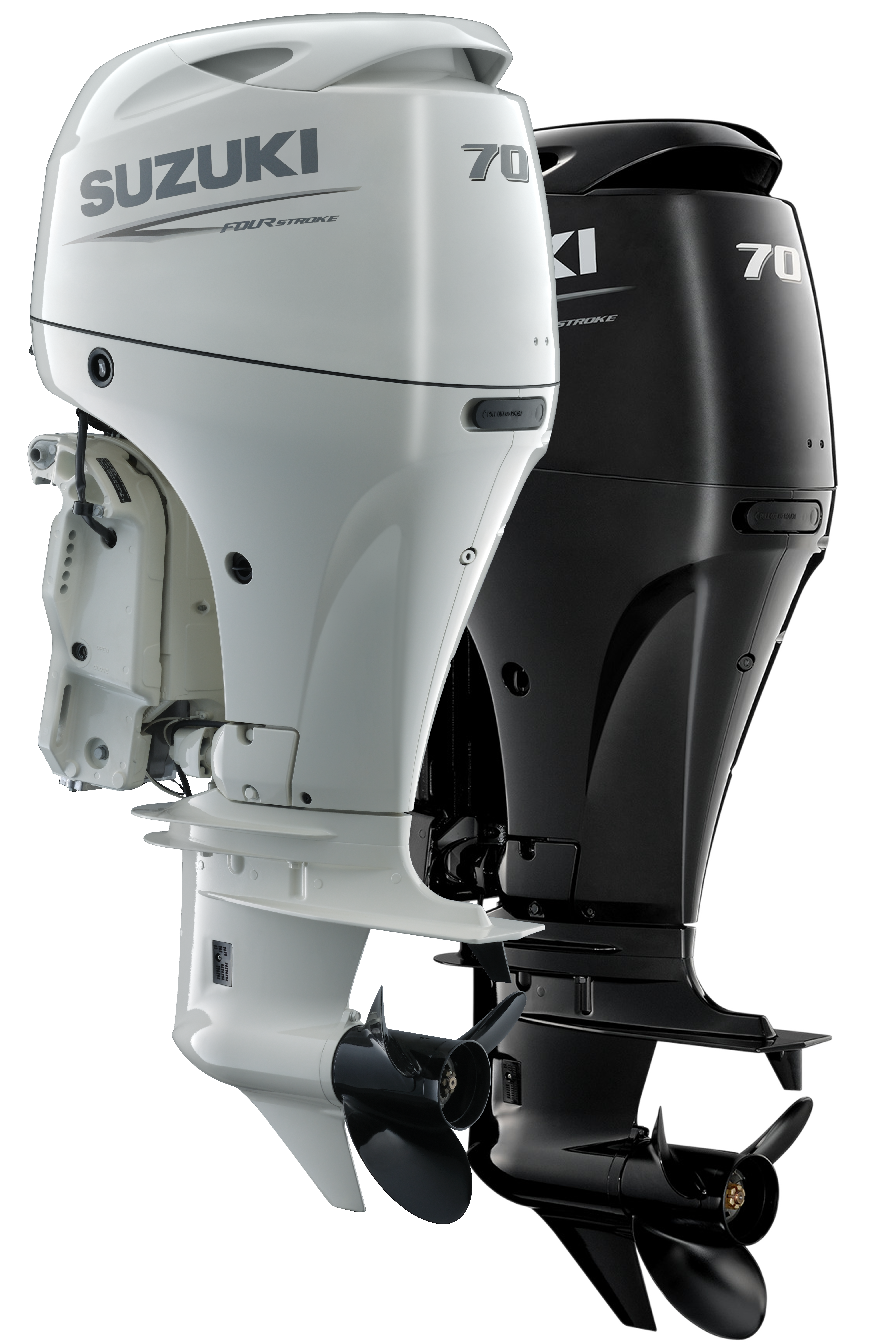

DF70A

DF70A

DF70ATL

R112 400

DOWNLOAD BROCHURESPECIFICATIONS

As the first of Suzuki’s new generation four-strokes, they are a showcase of advancements and achievements – such as digital sequential electronic fuel injection, a powerful 2.59:1 final drive ratio, and a zero-maintenance self-adjusting timing chain – that Suzuki has pioneered over the last ten years.

They also feature Suzuki’s proven offset drive shaft which, used in combination with a newly designed power head, contributes to making the DF90 the smallest and lightest four-stroke outboard in its class. This compact, lightweight design also makes any of these two outboards ideal for use on a wide range of boat types.

Cowlings on all three outboards feature new graphics on their sides and Suzuki’s ‘S’ logo on front giving these first a new generation of four-strokes a sharp new look. This compact, lightweight design also makes any of these outboards ideal for use on a wide range of boat types.

READ MORE

Features:

  • Stainless Steel Water Pump Housing
  • Water-Cooled Vapour Separator/Fuel Pump
  • Tuned Temperature-Controlled Intake System
  • SOHC (Single Overhead Cam) Design
  • Sequential Multi-Point Fuel Injection
  • Clean and Efficient
  • On-Board Computer Diagnostics
  • 3-Star Ultra-Low Emission CARB Rating
  • Fresh Water Flush
  • 3-Stage Baffle Chamber and Thru-Hub Exhaust
  •  Special Cooling System
  • Transistorized Ignition
  • Multi-Function Centre Tiller Handle Option
  • EZ Oil Drain Plug
  • Idle Air Control
  • Lowest Gear Ratio in Class
  • One-Piece Forged Crankshaft
  •  Tilt Limit Switch

RANGE

remote
REMOTE
long
LONG

508mm

COLOURS

DF70A

TECHNOLOGIES

lean burn

LEAN BURN

The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.

ADVANTAGE:
  • Significant improvement in fuel economy in all speed ranges especially at cruising speed.
  • Fuel is saved and gasoline costs are cut thanks to improved fuel economy.
self-adjusting timing chain

SELF-ADJUSTING TIMING CHAIN

The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.

ADVANTAGE:
  • More durability compared to belt types of same class.
  • Maintenance-free.
2.59 GEAR RATIO

2.59 GEAR RATIO

  • High propulsive efficiency with large diameter propeller.
  • Powerful navigation, maintaining propeller rotation even with a larger load.
  • Tremendous power to turn large diameter propellers, offering quick acceleration.

SPECIFICATIONS

SPECIFICATIONS

Model Name: DF70ATL
Engine Mounting: Shear Mount
Propeller Size (in.): 3 x 13 3/4-14 x 13-23
Gear Shift: F-N-R
Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
Horse Power: 70
Shaft Length mm (in.) : L: 510 (20),
Displacement: 1,502 (91.7)
Weight kg (lbs.): L: 155 (341),
No. of Cylinders: Inline 4
Ignition System: Fully-transistorized
Bore & Stroke m/m (in.): 75 x 85 (3.0 x 3.3)
Full Throttle Operating Range rpm: 5000–6000
Maximum Output kW (PS)/rpm: 51.5 (70)/5500
Starter System: Electric
Oil Pan Capacity L (US/Ipm.qt.): 4.0 (4.2/3.5)
Alternator: 12V 27A
Trim Method: Power Trim and Tilt
Fuel: Unleaded
Gear Ratio: 2.59 : 1
Drive Train Protection: Rubber Hub
Standard Propeller: Optional
Available Prop Pitches: 26-Nov
Steering: Remote


50 YEARS EXPERIENCE

50 years of leading the way in innovation – from bringing the down thrust propeller system to market in 1965, to introducing the world’s first 300HP V6 4-Stroke outboard in 2006.



PEACE OF MIND

As well as offering a three-year leisure or 1-year commercial warranty on all of our 4-stroke outboards, we also have a nationwide network of Suzuki Authorised Dealers who are always on hand to provide support wherever you are, whenever you need it.



TECHNOLOGY

As every engine in our range is designed specifically for the rigours of marine use our 4-Stroke outboards provide quiet, fuel-efficient and reliable technology whilst delivering market-leading power and performance.
