TRUSTED. EFFICIENT. SOPHISTICATED.

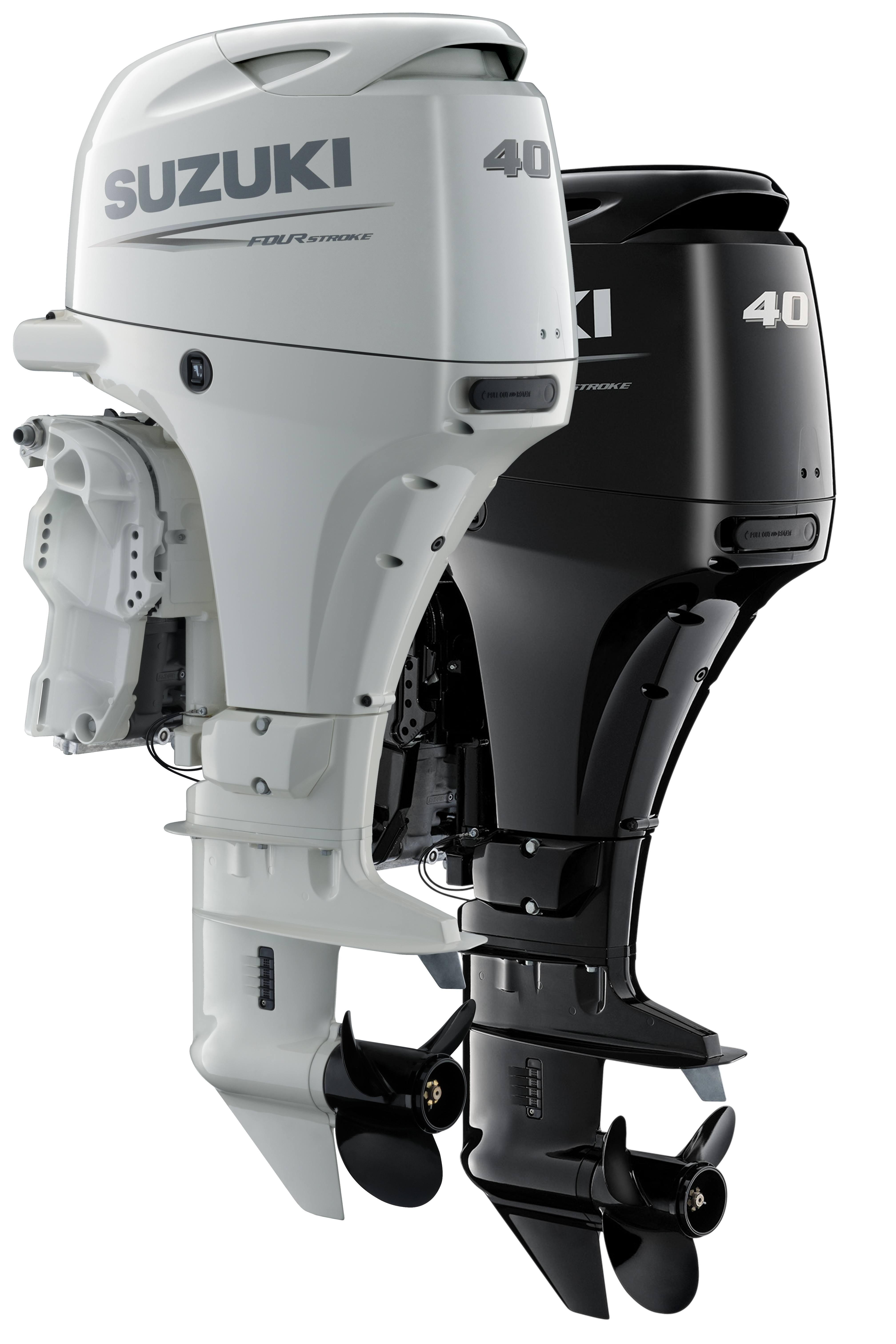

The DF40A range provides a high performance, compact and powerful outboard making it the ideal outboard for all kinds of boats and uses.
LEAN BURN CONTROL SYSTEM
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
Suzuki’s Fuel-Efficient, High Performance, New Generation DF40
In 2011, Suzuki announced the launch of new fuel-efficient and high performance four stroke outboard motors – the new generation DF40. The new model boast a host of technical features that combine to give them increased fuel efficiency and performance, while weighing less and fitting more compactly on the transom – all of which are qualities that today’s boaters are demanding.
Not surprising that Suzuki has been honoured with a prestigious Innovation Award at the 2011 Miami International Boat Show for its new DF40 outboard motors. The award was made on February 17, by the National Marine Manufacturers Association (NMMA) and Boating Writers International (BWI), recognising the DF40 as the most innovative new products in the Outboard Engines Category.
The Innovation Awards recognise products that best meet the following criteria; innovativedistinction from other products currently being made, benefit to the marine industry and/or the consumer, signify practicality, cost-effectiveness and availability to the consumer.
Starting is a breeze, with Suzuki’s Easy Start System. Turn the key once and the engine automatically turns over, coming to life at your command. Once underway, Suzuki’s advanced Lean Burn Control technology takes full advantage of sensors monitoring engine performance and ambient environmental conditions. Using this input, the Lean Burn Control accurately predicts engine needs to provide the fuel injection system with just the right mixture of air and fuel, delivering optimal fuel efficiency.
Initial tests have shown that these new generation outboards use 27% less fuel than thecurrent 40 models, mainly in the cruising range, which is where the engine is used for the majority of the time.
These new outboards are based on the Suzuki’s proven in-line three-cylinder dual overhead cam (DOHC) 12-valve engine with a highly efficient air intake system, which comes into effect in the high RPM range. With 941 cm3 of displacement, multi-point sequential electronic fuel injection, these engines respond quickly and confidently to every move of the throttle, particularly when accelerating from cruising speeds. All of this technology combines to provide quiet and efficient operation as well as exhilarating performance. For example, the Suzuki engineers are pleased to report that the new DF40 is 6% faster in their top speed and 25% quicker in acceleration than the current Suzuki models.
When designing these new engines, Suzuki’s engineers also paid close attention to durability. Internal oil flow is more efficient, keeping moving parts better lubricated while using less energy. These new engines also feature Suzuki’s maintenance-free oil-bathed timing chain, which will give boaters years of dependable service. This is the first time this feature has ever been offered in the 40 horsepower class.
The compact size and light weight of the new DF40 make them an ideal power match for a wide variety of boats, including; FRP pleasure boats, fishing boats, small RIBs and aluminium boats. In particular these new outboards will be ideal for entry level boating.
Suzuki is proud to have been chosen the sole supplier of marine outboard motors to the London 2012 Olympic & Paralympic Games Sailing Regatta, with the all-new DF40 being one of the models used for this prestigious event.
- High Performance DOHC 12-Valve Engine
- Suzuki’s Innovative Lean Burn Control Systems Delivers Remarkable Fuel Efficient Operation.
- Electronic Fuel Injection Delivers Optimum Performance.
- Maintenance-free Timing Chain.
- Large Capacity 19A Alternator
Self-adjusting timing chain
Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times. The DF50A and DF40A are the only outboards in the 36.8kW (50PS)/ 29.4kW (40PS) outboard class to incorporate a timing chain. The chain is oil-bathed, self adjusting, and maintenance free to provide boaters with years of dependable service.

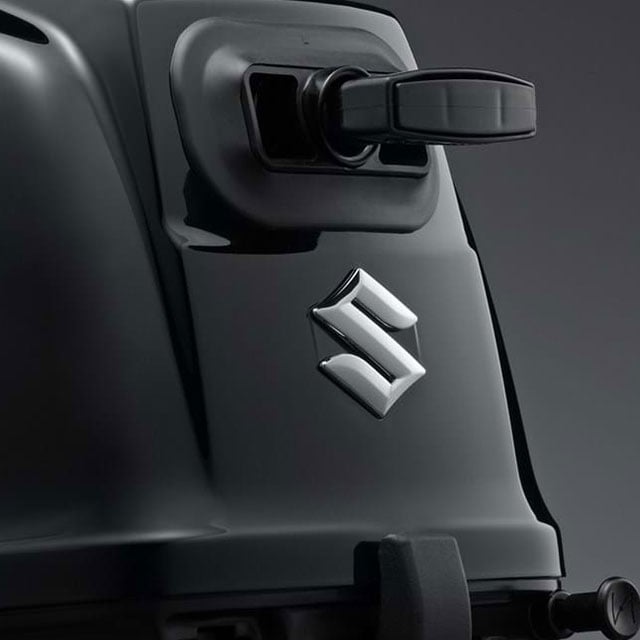

Easy start system
With the easy start system there’s no need to hold the key, just turn it once and the system stays engaged until the engine starts. This smooth and simple design feature gets you up on the water quicker.
Lean Burn control system
Suzuki’s Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
Largest reduction gear ratio in its class
A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.
The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.
- Significant improvement in fuel economy in all speed ranges especially at cruising speed.
- Fuel is saved and gasoline costs are cut thanks to improved fuel economy.
SELF-ADJUSTING TIMING CHAIN
The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.
- More durability compared to belt types of same class.
|Engine Type:||DOHC 12 Valve|
|Fuel Delivery System:||Multi Point Sequential|
|Electronic Fuel Injection|
|No. of Cylinders:||3|
|Piston Displacement:||941 (cm3)|
|Maximum Output / RPM:||29.4(kW)/5 500|
|Full Throttle Operating Range:||5,000 – 6,000 (rpm)|
|Oil Pan Capacity:||2.7 (L)|
|Engine Mounting:||Shear Mount|
|Trim Method :||Power Trim and Tilt|
|Exhaust:||Through Prop Hub Exhaust|

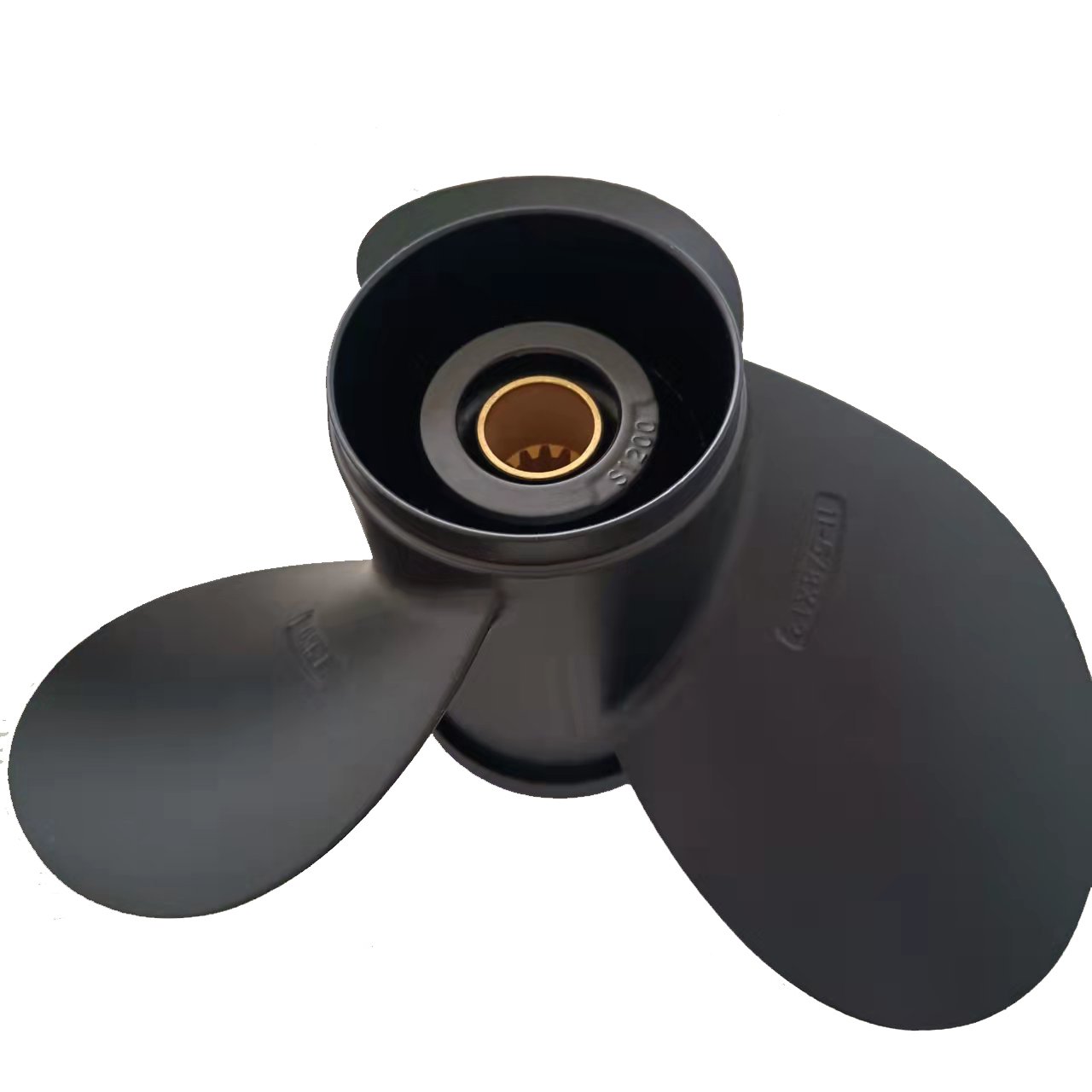

|Propeller Selection (Pitch):||11-1/2 x 9 11-1/2 x 13|
|11-1/2 x 10 11-3/8 x 14|
|11-1/2 x 11 11-1/4 x 15|
|11-5/8 x 12 11-1/8 x 16|
50 YEARS EXPERIENCE
50 years of leading the way in innovation – from bringing the down thrust propeller system to market in 1965, to introducing the world’s first 300HP V6 4-Stroke outboard in 2006.
PEACE OF MIND
As well as offering a three-year leisure or 1-year commercial warranty on all of our 4-stroke outboards, we also have a nationwide network of Suzuki Authorised Dealers who are always on hand to provide support wherever you are, whenever you need it.
As every engine in our range is designed specifically for the rigours of marine use our 4-Stroke outboards provide quiet, fuel-efficient and reliable technology whilst delivering market-leading power and performance.
