LIGHT. COMPACT. STYLISH.

The largest reduction gear ratio with a compact 100hp engine, and offset driveshaft for compact body.



Water Detecting System

Helps to protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.



Tilt limit system

To protect the boat and motor from damage a user adjustable tilt limit switch prevents the outboard from tilting beyond a predetermined point.

DF100B

DF100B

R139 500

DF100BTL

R141 000

DF100BTX

DOWNLOAD BROCHURESPECIFICATIONS

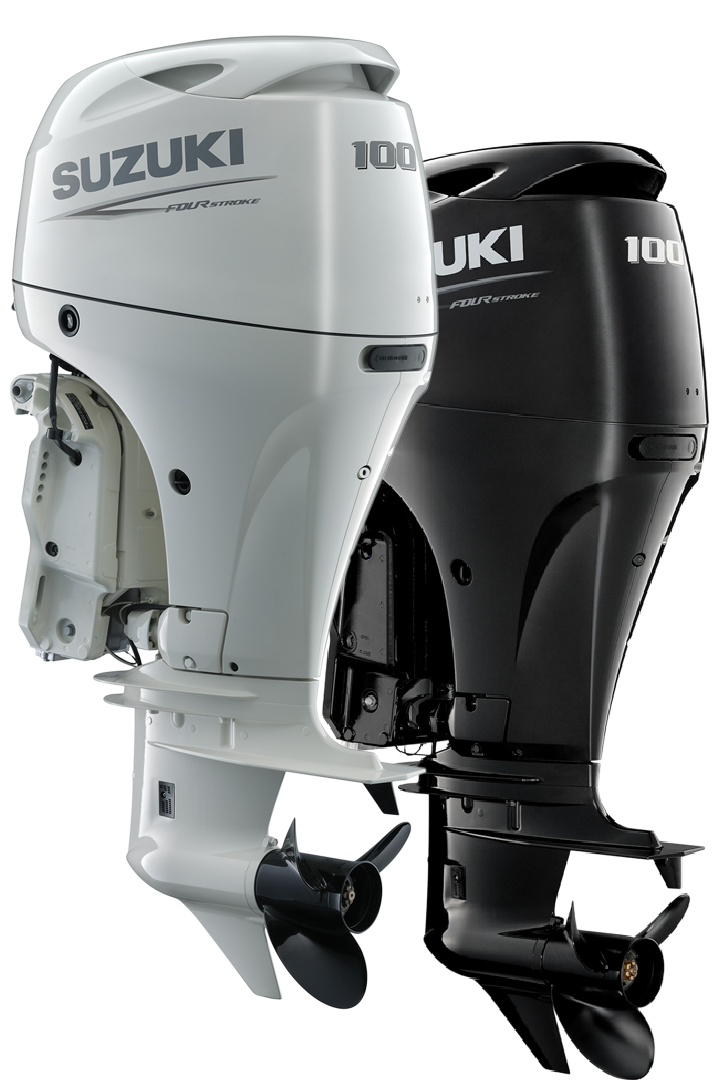

Introducing the new lightest-in-class DF100B

Suzuki is known for manufacturing lightweight and compact four stroke outboards and the new DF100B is no different. Suzuki has focused on this important mid-range sector and successfully set out to create the lightest 100ps four stroke outboard available today.

At just 157kg, the new DF100B is 25kg lighter than the existing DF100A and 6kg lighter than the closest competitor model, making it the ideal power unit for a wide range of boats. High output performance is realised in a compact body size with weight of 157kg. It meets customer needs for more compact and higher output outboard model to be fitted on mid-size commercial and leisure boats.

Suzuki has based the new DF100B on a proven design by using the same 1502cc engine unit as the DF70A/80A/90A models. However, it has added even more value to this new model by up-rating the ECM as well as adding a water detection fuel filter. The water detection fuel filter is designed to help protect the engine by alerting the driver when water is present in the fuel.

This new model will be available in ‘Pearl Nebular Black’ or ‘Cool White’ with a large 3D silver ‘S’ emblem to enhance its premium look.

READ MORE

Features

Pic 0

Compact

100ps from a DF90A engine body

Offset drive shaft for compact body

The Largest Reduction Gear Ratio

2.59:1, the greatest reduction gear ratio in 100ps class. (SUZUKI internal research)

Pic 3

Offset Driveshaft

The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.

Advantage:

  • Less vibration
  • More compact engine
  • Stable steering performance



Piuc 2

2-Stage Gear Reduction

This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller for high propulsive efficiency while providing higher torque.

Advantage:

  • High propulsive efficiency with large diameter propeller.
  • Powerful navigation, maintaining propeller rotation even with a larger load.
  • Tremendous power to turn large diameter propellers, offering quick acceleration.

Streamlined Gear Case and Highly Efficient Propeller

The lower gear case on all four outboard motors utilizes a hydrodynamic design. As the lower unit moves through the water its sleek form reduces drag by up to 36% compared to conventional designs, contributing to faster acceleration and increased speed.

Thanks to the powerful torque delivered with Suzuki’s two-stage gear reduction, these outboards can turn a large diameter propeller. Suzuki engineered a new highly efficient propeller that takes advantage of this torque to provide faster acceleration and higher top speed.

Pic 4

Water Detecting System

It helps protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.

Advantage:

  • Can avoid water in fuel, which can lead to issues like poor combustion, lower power output and corrosion

Pic 5

RANGE

remote
REMOTE
long
LONG

508mm

DF100BTL

ultra long
ULTRA LONG

635mm

DF100BTX

COLOURS

DF100B
DF100B

TECHNOLOGIES

lean burn

LEAN BURN

The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.

ADVANTAGE:
  • Significant improvement in fuel economy in all speed ranges especially at cruising speed.
  • Fuel is saved and gasoline costs are cut thanks to improved fuel economy.
self-adjusting timing chain

SELF-ADJUSTING TIMING CHAIN

The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.

ADVANTAGE:
  • More durability compared to belt types of same class.
  • Maintenance-free.
water detecting system

SUZUKI WATER DETECTING SYSTEM

It helps protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.

ADVANTAGE:
  • Can avoid water in fuel, which can lead to issues like poor combustion, lower power output and corrosion.
2.59 GEAR RATIO

2.59 GEAR RATIO

ADVANTAGE:
  • High propulsive efficiency with large diameter propeller.
  • Powerful navigation, maintaining propeller rotation even with a larger load.
  • Tremendous power to turn large diameter propellers, offering quick acceleration.

SPECIFICATIONS

SPECIFICATIONS

MODEL DF100B
RECOMMENDED TRANSOM HEIGHT mm L: 508, X: 635
STARTING SYSTEM Electric
WEIGHT kg*1 L: 157, X: 161
ENGINE TYPE DOHC 16-Valve
FUEL DELIVERY SYSTEM Multi-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS 4
PISTON DISPLACEMENT cm3 1,502
BORE ×STROKE mm 75 x 85
MAXIMUM OUTPUT kW 73.6
FULL THROTTLE OPERATING RANGE rpm 5,700-6,300
STEERING Remote
OIL PAN CAPACITY Lit. 4
FUEL TANK CAPACITY Lit. 25 (Optional)
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 27A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.59:1
GEAR SHIFT F-N-R
EXHAUST Through Prop Hub Exhaust
DRIVE PROTECTION Rubber Hub
PROPELLER SELECTION (Pitch)*2                   All propellers are the 3-blade type 13″-23″


50 YEARS EXPERIENCE

50 years of leading the way in innovation – from bringing the down thrust propeller system to market in 1965, to introducing the world’s first 300HP V6 4-Stroke outboard in 2006.



PEACE OF MIND

As well as offering a three-year leisure or 1-year commercial warranty on all of our 4-stroke outboards, we also have a nationwide network of Suzuki Authorised Dealers who are always on hand to provide support wherever you are, whenever you need it.



TECHNOLOGY

As every engine in our range is designed specifically for the rigours of marine use our 4-Stroke outboards provide quiet, fuel-efficient and reliable technology whilst delivering market-leading power and performance.
